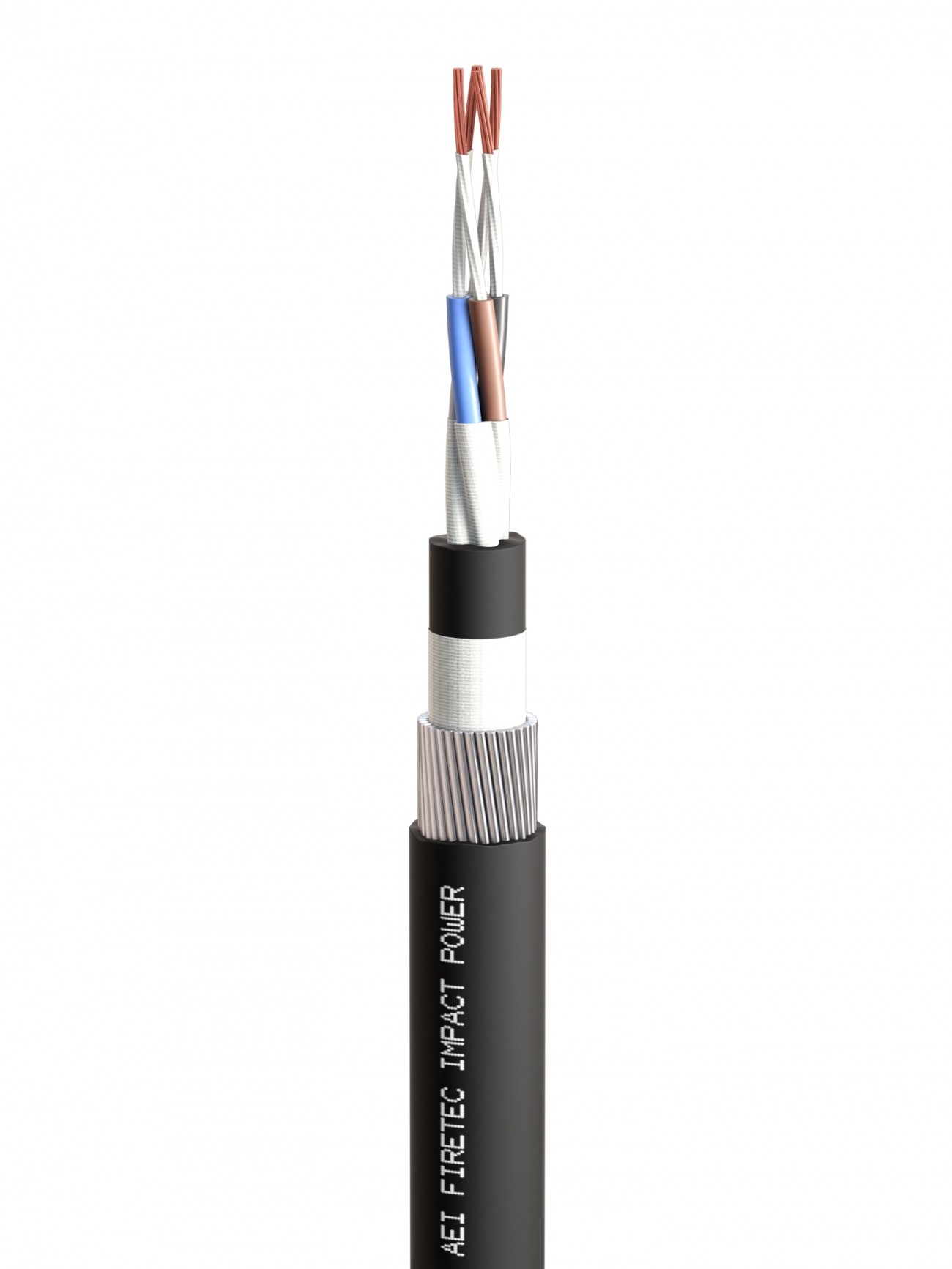

FIRETEC IMPACT POWER

BS 7846-F120
Cores *
Nominal cross-sectional area (mm²) *
Length (m) *

Affiliates - Manufacturing standard

https://www.aeicables.co.uk/British Approvals Service For Cables (BASEC) https://www.aeicables.co.uk/LPCB

Multicore Armoured Power & Control Cables designed as per BS 7846 with Steel Wire Armour construction to meet category F120 fire test (C-W-Z as per BS6387)

 Fire Performance

  • BS7846 F120 - LPCB
  • BS6387 C - W - Z - LPCB
  • BS EN50200 PH120
  • BS8434-2
  • BS8519:2020 Power & Control CAT 1, 2 & 3
  • BS8491 F120

Additional Fire Performance

  • BS EN50267 - IEC60754 - Acid Gas Emission
  • BS EN50268 - IEC61034 - Smoke Emission
  • BS EN50265, 50266
  • BS EN / IEC60332-1 Flame Propagation
  • BS EN / IEC60332-3 Categories A, B & C Flame Propagation

Construction

  • Class 2 Plain Annealed Copper Conductors to BS EN60228
  • Mica Glass Taping
  • XLPE Insulated
  • Low Smoke Zero Halogen (LSZH) Bedding
  • Galvanised Steel Wire Armour
  • Low Smoke Zero Halogen (LSZH) Sheathed


Voltage Rating 600/1000 Volt
Sheath Colour Black as Standard
Construction Class 2 Copper Conductors, Mica Glass Taped, XLPE Insulated, LSZH Bedding, SWA, LSZH Sheathed
Voltage Rating 600/1000 Volts
Core Identification 3 Core - Brown, Black & Grey 4 Core - Brown, Blue, Black & Grey
Sheath Colour Black
Short Circuit Temp +250 degrees C
Bend Radius 6 x Overall Diameter for Circular and 8 x Overall Diameter for Sector Shaped Conductors
Operating Temperature -10 to + 90 degrees C
